Raspberry pi4 Mini Desktop Case Frank2

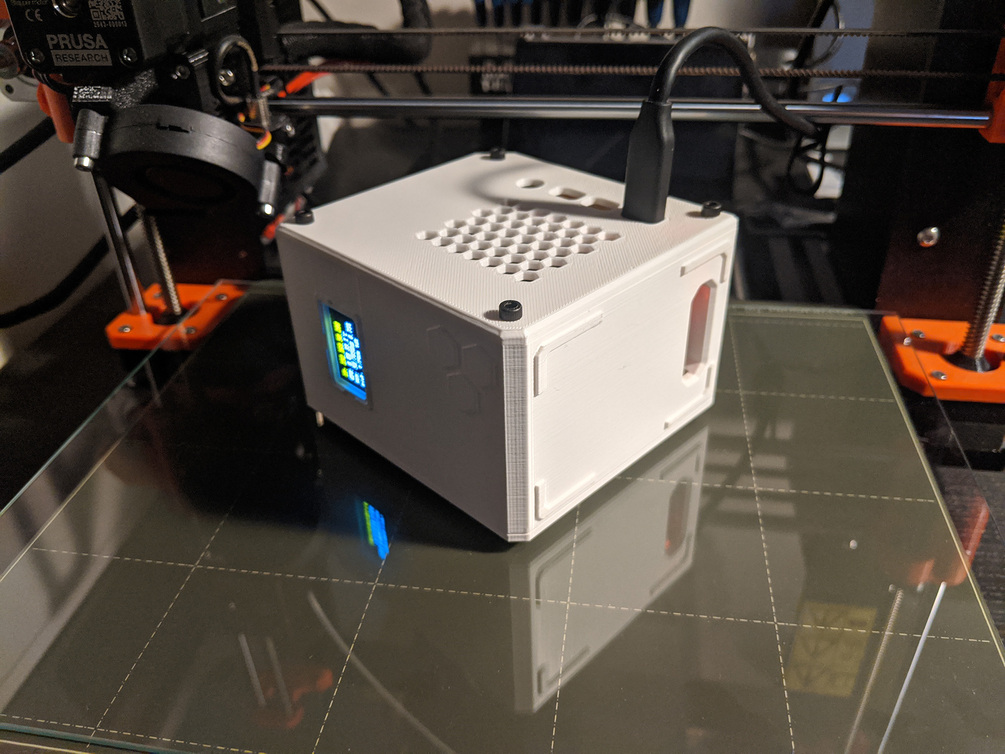

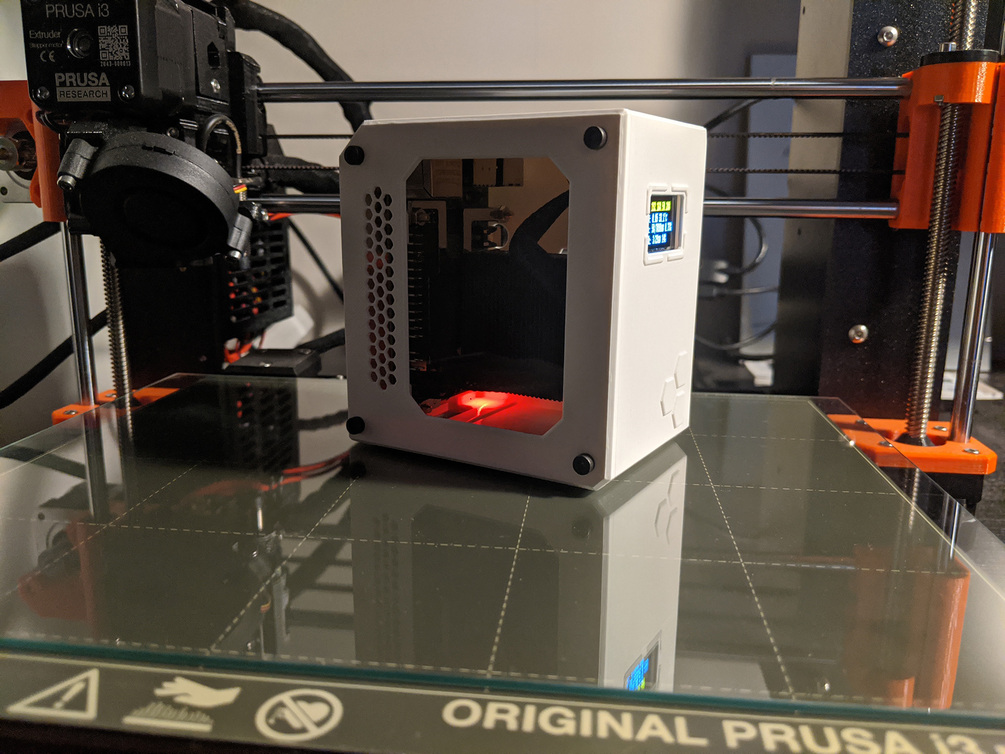

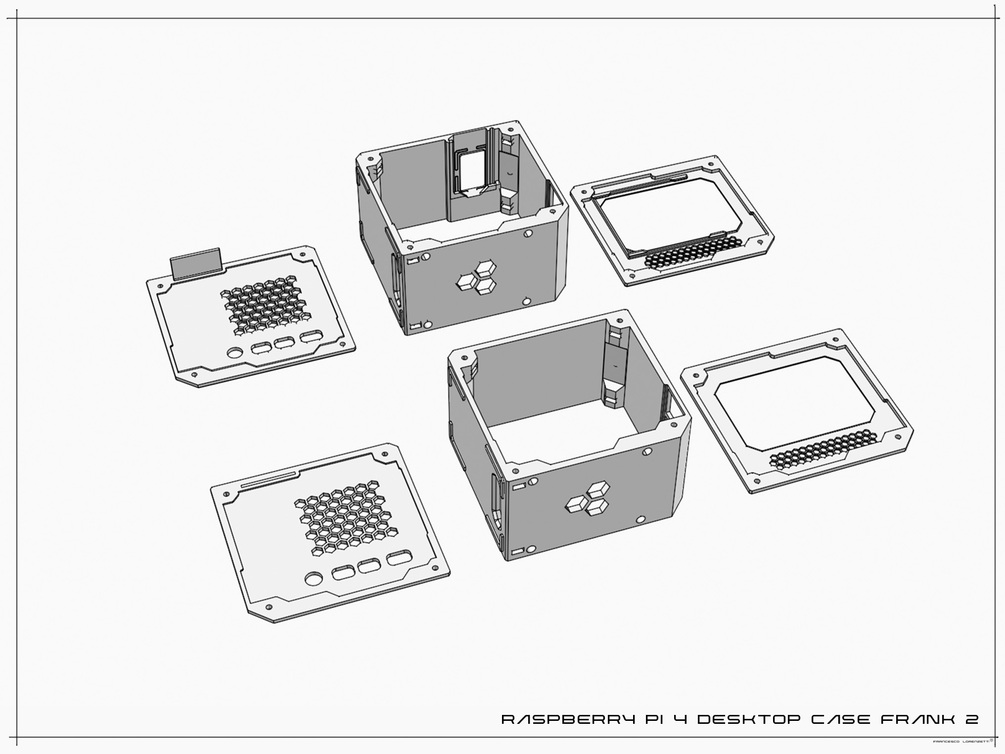

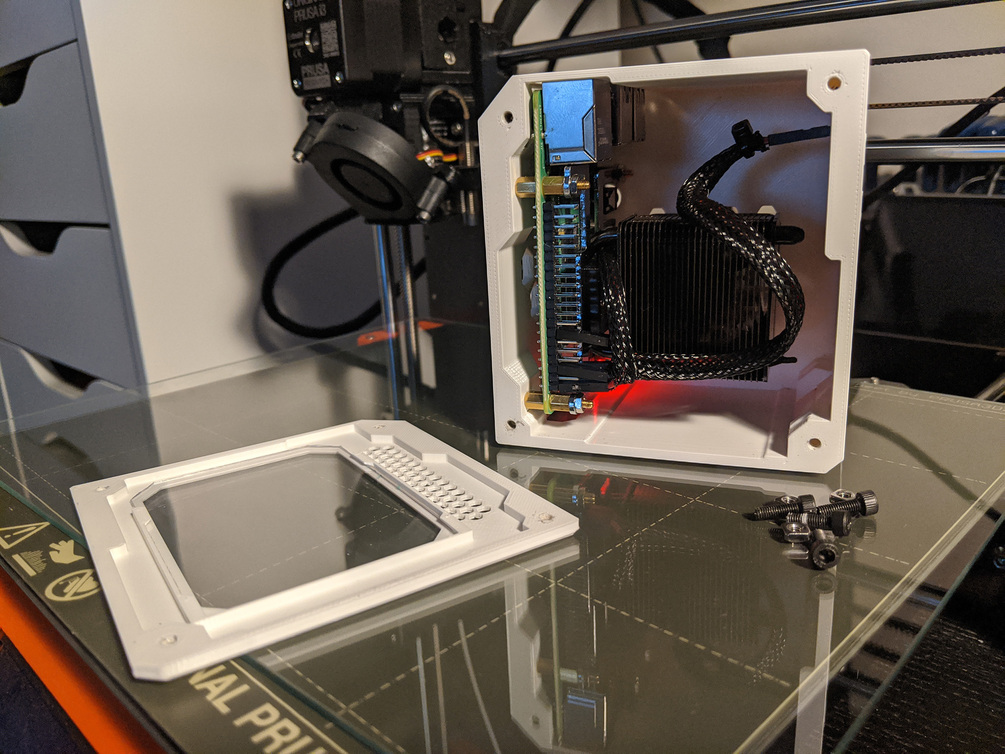

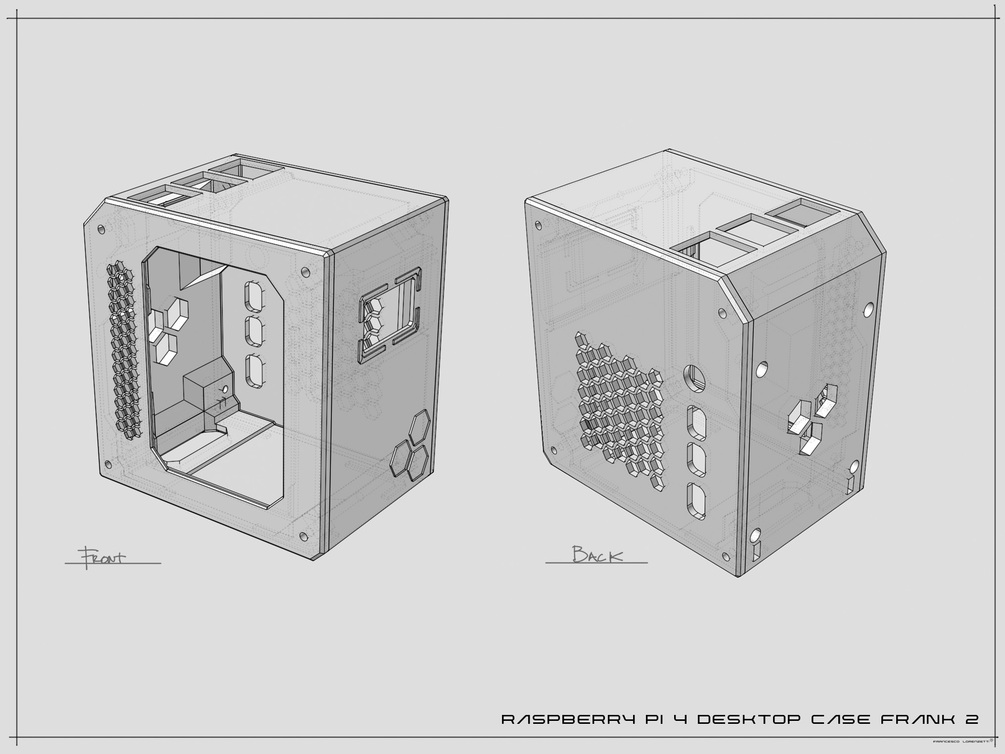

3d STL files for printing your own raspberry pi 4 mini desktop Frank2: - 2x body file, one simple and one with the space/groove for a I2C OLED 0.96 Inch OLED Display - 2x front panels, one simple and one with the groove to slide a 1mm thick plexiglass sheet - 2x back panel with a cool hexagon pattern one simple and one with modification to keep the OLED display in place. RASPBERRI PI, ICE TOWER COOLER, OLED DISPLAY AND SCREWS ARE NOT INCLUDED Notice : I designed this case to fit a raspberry pi 4b with the Ice Tower cooler. To mount the motherboard I used the screws, spacers/standoff from the IceTower cooler kit + various M3 screws + M3 square nuts for the overall assembly. It's possible to mount a small I2C OLED 0.96 Inch OLED Display . For the front panel it is possible to fit a 1mm thick Plexiglass panel. Be careful when you cut it! Enjoy!!! An extra Full HD CG wallpaper created from me for your raspberry pi desktop :)
- 2x body file, one simple and one with the space/groove for a I2C OLED 0.96 Inch OLED Display - 2x front panels, one simple and one with the groove to slide a 1mm thick plexiglass sheet - 2x back panel with a cool hexagon pattern one simple and one with modification to keep the OLED display in place.
